The AD4 Crawler Drill's special design modification enables it to drill 125% faster than other brands, saving a significant amount of man hours.
The AD4 Crawler Drill has a track record of almost no failures and ensures ready availability of spares. In contrast, other similar machines experience an average of 540 hours of downtime due to breakdowns and non-availability of spares.
With Drillman AD4 Crawler Drills, you save 26.6% on fuel consumption. It operates with less air pressure compared to other similar machines, allowing you to save up to 2400 litres of fuel every month.
The AD4 crawler drill is a high-performance drilling machine designed for mining, quarrying and construction applications. This crawler drill machine is suitable for DTH drilling in hard rock and surface mining environments. The AD4 crawler drill offers high efficiency, mobility and reliable drilling performance.
With a specialised design that delivers up to 125% faster drilling performance compared to conventional drills, the AD4 significantly reduces drilling time and labour costs while maintaining durability in tough rock formations. Its efficient power transmission and reliable hydraulics make it an ideal choice for high-volume production environments where consistent and reliable drilling results are crucial.
| Description | Metric | English |
|---|---|---|
| Weight: | 2500 KG | 5515 Lbs |
| Feed Motor: | 4.0 KW | |
| Pull Up: | 1825 Kg | 4023.4 Lbs |
| Pull Down: | 1730 kg | 3814 Lbs |
| Hydraulic Pump Motor: | 5.8KW | 7.77 HP |
| Propel Motor: | 3.8 KW | 5.10 HP |
| Tramming Speed: | 3.5 kmph | 2.2 mph |
| Climbing Ability: | 30° | |
| Track Occilation: | 20° | |
| Ground Clearance: | 240 mm | 9.45 Inches |
| Height: | 1670 mm | 65.75 Inches |
| Weidth: | 1800 mm | 70.89 Inches |
| Length: | 4800 mm | 189 Inches |
| Boom Movement | ||
| Below Center Line: | 30° | 30° |
| Above Center Line: | 45° | 45° |
| Boom Swing (Right): | 90° | 90° |
| Boom Swing (Left): | 75° | 75° |
| Maximum Depth: | 20mtrs | |
| Hole Diameter: | 76-127mm | |
| Air Compressor: | 14 Bar |

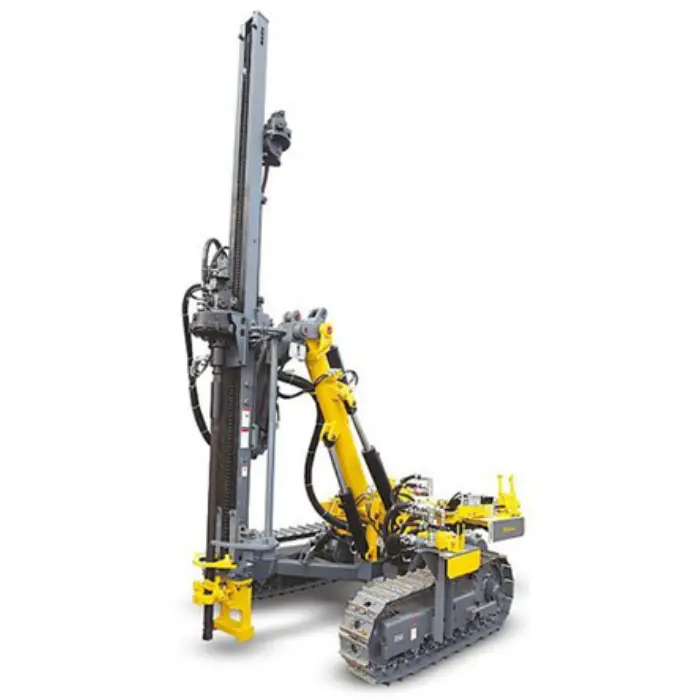

The AD4 Crawler Drill is a high-performance drilling machine designed for down-the-hole (DTH) rock drilling in mining, quarrying, tunneling and construction applications. Built on a rugged tracked platform, this crawler drill offers excellent stability and mobility on uneven terrain, enabling operators to reach and drill challenging sites with ease.
• High-efficiency drilling for faster hole completion
• Crawler mount for enhanced mobility on rough terrain
• Robust construction for continuous heavy-duty use
• Suitable for DTH drilling in hard rock, coal and quarry environments
• Reduces labour costs and increases operational productivity
• Easy maintenance and long service life
• Surface mining operations
• Quarry drilling and production blasting
• Tunnel drilling and underground works
• Construction foundations and earth retention drilling
• Hard rock drilling in civil and infrastructure projects
A crawler drill combines a powerful drilling rig with a tracked undercarriage to traverse rough and inclined terrain. The AD4 model drives a DTH hammer using hydraulic power, delivering consistent impact and penetration rates while maintaining drill alignment. The combination of crawler mobility and down-the-hole power makes it suitable for long-range and deep hole drilling tasks.
